On Dec. 9, IBM unveiled a breakthrough in co-packaging optics that would cut back GPU downtime and speed up AI coaching.

IBM’s working prototype considerably will increase the variety of optical fibers connecting on the fringe of a silicon photonics chip by changing conventional glass with a polymer optical waveguide. This progressive strategy might pave the way in which for sooner, extra environment friendly knowledge switch and permit knowledge facilities to deal with better workloads.

The concept of co-packaged optics has been round for a very long time, however IBM’s course of allows what the corporate calls the world’s first stress-tested prototype.

IBM spokespeople didn’t instantly handle questions on availability or a timeline. As a substitute, they emphasised their intent to develop a roadmap and expressed their openness to sharing design materials with foundries sooner or later.

“On the finish, the chip product corporations should ask for that, after which the product corporations will design that into their chip design, and the foundries can manufacture,” Makesh Khare, basic supervisor of IBM semiconductors, stated at a briefing. “However it has no particular requirement concerning the foundry side. It can have a design side we will present to the chip corporations.”

What makes a polymer optical waveguide stand out?

Co-packaged optics with polymer optical waveguides are an alternative choice to copper connections and are sometimes used to hyperlink GPU accelerators in knowledge facilities. These sit on the fringe of a chip and let many high-density bundles of optical fibers squeeze right into a tiny house, with half a micron or much less between the fiber and the connector. IBM stated this brings a dramatic bandwidth enhance between chips in comparison with electrical connections.

The dimensions — a 50-micron pitch — additionally differentiates the prototype. 250-micron pitch is a regular dimension. Going smaller interprets to elevated bandwidth.

The polymer optical waveguide stacks in as much as 4 layers for as much as 128 channels. On the “beachfront” the place the connector meets the chip, it presents 51 fibers per millimeter.

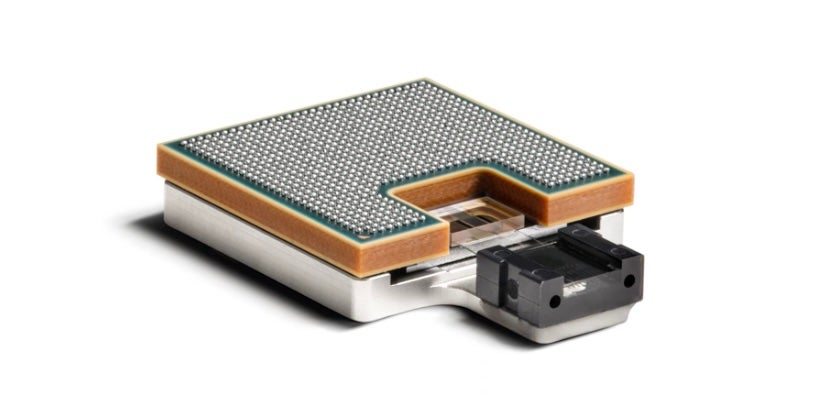

the Waveguide Lids and Polymer Optical Waveguide Are Integrated with a Chip.
the waveguide lids and polymer optical waveguide are built in with a chip picture ibm

“The massive deal is just not solely that we’ve received this massive density enhancement for communications on module, however we’ve additionally demonstrated that that is appropriate with stress exams that optical hyperlinks haven’t been passing previously,” John Knickerbocker, distinguished engineer at IBM analysis, stated in a press launch.

“This co-packaged optics innovation is mainly bringing the facility of fiber optics on the chip itself,” Khare added.

IBM’s polymer optical waveguide might compete with novel connectivity processes just like the Ranovus Odin digital and photonic built-in circuit or linear-drive pluggable optics. Researchers are additionally experimenting with glass ribbons or vertical-graded interconnections on this space.

Knickerbocker stated within the briefing: “It’s onerous to say who’s up in entrance“ between polymer optical waveguides and linear-drive pluggable optics.

IBM has manufactured co-packaged optics with polymer optical waveguides at its Bromont testing facility in Quebec.

SEE: Knowledge facilities will want extra energy for AI coaching as hyperscalers provide extra superior fashions.

The proposed market: Knowledge facilities used to coach AI

IBM proposes the brand new connector may gain advantage the booming generative AI business by:

  • Energy draw discount (of as much as 5 occasions) mid-range electrical interconnects, together with at lengthy ranges (tons of of meters).
  • Discount within the time it takes to coach a big language mannequin, from three months to 3 weeks.
  • Elevated vitality effectivity.

“With this breakthrough, tomorrow’s chips will talk very like how fiber optics cables carry knowledge out and in of information facilities, ushering in a brand new period of sooner, extra sustainable communications that may deal with the AI workloads of the long run,” SVP and Director of Analysis Dario Gil stated in a press launch.
