Whether or not you’ve got been constructing computer systems for a while or wish to get entangled, you will have doubtless heard the time period PCIe referring to motherboards. Standing for Peripheral Element Interconnect Specific, it is a connection sort for sure parts in your pc, resembling your graphics card, SATA SSD, sound card, and community playing cards, amongst others.
For reference, the present customary is PCIe 5.0 which was launched in 2019 and has since been adopted by the very best motherboards with compliance for DDR5 RAM, that means far superior knowledge transfers in comparison with PCIe 4.0. Extra not too long ago, PCIe 5.0 has come to graphics playing cards, together with Nvidia’s RTX 50 collection (RTX 5090, RTX 5080, RTX 4070 Ti, and RTX 5070) and AMD’s RDNA 4 (RX 9070 XT and RX 9070).
With that stated, you might be questioning, what are PCIe lanes? That is precisely what we’re going over. We’ll be outlining the totally different slots, the info channels, and the variations between generations so that you’re absolutely in control, whether or not you’ve got made the soar over to PCIe 5.0, or simply wish to perceive your PC higher.
- What’s PCIe 5.0? The most recent part bandwidth customary defined
- Motherboard sizes defined: which must you purchase in 2025?
What are PCIe lanes?
PCIe lanes are knowledge channels inside a PCIe slot, which is used for transmitting and receiving knowledge between the motherboard and the part. There are two units of wires which is used to transmit knowledge in each instructions, and the quantity of lanes you will have obtainable pertains to the totally different slots on the motherboard.

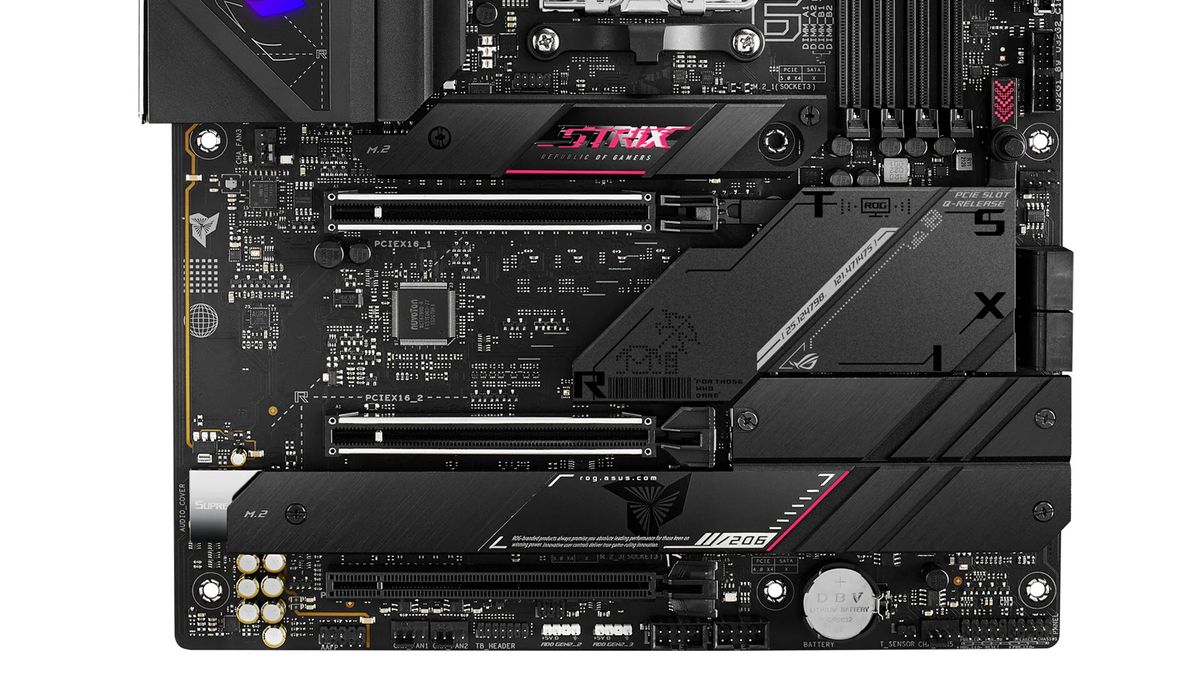

There are 4 totally different PCIe slots that you will discover in your motherboard. These are PCIe x1, x2, x4, x8, and x16; the extra lanes you will have obtainable on a slot, the extra knowledge will be transmitted and obtained. The smallest PCIe slot (PCIe x1) has a single lane obtainable and can be utilized for Wi-Fi playing cards, LAN playing cards, Bluetooth, and extra.
Alongside the identical strains, PCIe x4 slots have a complete of 4 PCIe lanes obtainable, which presents 4 instances the bandwidth and is usually used for issues resembling NVMe SSDs, growth playing cards, RAID controllers, and inner seize playing cards, amongst different issues. PCIe x8 doubles the obtainable lanes once more (with extra bandwidth) for issues resembling high-performance community adapters, storage controllers, and AI accelerator playing cards.
PCIe x16 ports have 16 PCIe lanes and essentially the most bandwidth obtainable, and they’re primarily utilized by your graphics card, which can want the quickest knowledge transmissions potential. PCIe lanes are dictated by your processor, so you may be beholden to what number of lanes can be utilized at a time. For very best GPU efficiency, you are going to want probably the greatest processors that has no less than 16 lanes to allocate to the slot. That is earlier than allocating sources in direction of an NVMe SSD and different aforementioned parts that share the pool.
Even entry-level graphics playing cards in 2025 have greater than sufficient PCIe lanes to have your graphics card operating at its greatest, with further allocations for SSDs and different inner parts on the board. For instance, the Intel Core Extremely 5 245K (constructed on the LGA 1851 socket) and AM5 funds choices just like the AMD Ryzen 5 7600X have 24 usable lanes apiece. It is much like previous-generation LGA 1700 (Alder Lake and Raptor Lake) and AM4 processors as effectively, with something older struggling.
PCIe bandwidths defined
Now that you simply perceive what PCIe lanes are and the totally different slots you should utilize them on, we are able to element the totally different bandwidths afforded by the 2 most up-to-date generations. Beginning with the previous-generation, PCIe 4.0, which debuted in 2017 and is extensively in use in the present day.
With the earlier customary, a PCIe x1 port has a complete bandwidth of 2GB/s, PCIe x4 has 8GB/s, PCIe x8 makes use of 16GB/s, and PCIe x16 tops out at 32GB/s. Briefly, PCIe 5.0, first launched in 2019 (however adopted within the early 2020s), doubles issues. Meaning the PCIe 1x slot has a 4GB/s bandwidth, 4x has 16GB/s obtainable, 8x is 32GB/s, and 16x makes use of 64GB/s for in the present day’s graphics playing cards.
Due to the bigger bandwidths obtainable throughout the PCIe lanes, PCIe 5.0 parts will be a lot sooner than their PCIe 4.0 counterparts. We are able to see this evidenced simply by M.2 PCIe 5.0 NVMe SSDs (Gen 5), with lots of the greatest M.2 SSDs now topping out at round 14,000 MB/s sequential learn and write in comparison with the utmost of 8,000 MB/s sequential of PCIe 4.0 (or Gen 4) fashions. You possibly can discover this within the soar between the Seagate FireCuda 540 and the Seagate FireCuda 530, although each have since been surpassed by later choices.
It is extra obvious with the newest graphics playing cards. Whereas PCIe 5.0 NVMe SSDs arrived as early as 2022, it would not be till January 30, 2025, that GPUs would start to make the most of the bandwidth obtainable. The RTX 5090 and RTX 5080 lead the cost first, with the RTX 5070 Ti and RTX 5070 following in February and March, respectively. Equally, AMD’s RDNA 4 technology additionally used PCIe 5.0 x16 ports with its RX 9070 and RX 9070 XT.
It makes essentially the most sense to have a look at the 2 highest-end choices for a way they make the most of the obtainable bandwidth from 16 PCIe lanes. The RTX 5090 has 32GB GDDR7 reminiscence with a velocity of 28 Gbps and a complete bandwidth of 1,792 GB/s on a 512-bit reminiscence bus. In distinction, the RTX 4090 makes use of 24GB GDDR6X reminiscence with 21 Gbps velocity and a complete bandwidth of 1,010 GB/s (or 1TB/s) with a 384-bit reminiscence bus. That is a distinction of 77% going from PCIe 4.0 x16 to PCIe 5.0 x16, regardless of them each utilizing 16 PCIe lanes. The info allocation is not the one defining issue within the bandwidth variations, but it surely exhibits how the 2 make the most of the identical slot, the identical lanes and are equally powered.
What are PCIe playing cards?
As touched upon above, a PCIe card (generally known as an growth card) is any part that makes use of any of the 4 obtainable PCIe slots in your motherboard. This (historically) now means community playing cards and wi-fi modules, resembling Wi-Fi 6E and Wi-Fi 7 playing cards, in addition to Bluetooth 5.4 adapters, which might provide the performance that your motherboard might not have shipped with. They’re normally small and cheap however will be helpful and straightforward to put in.

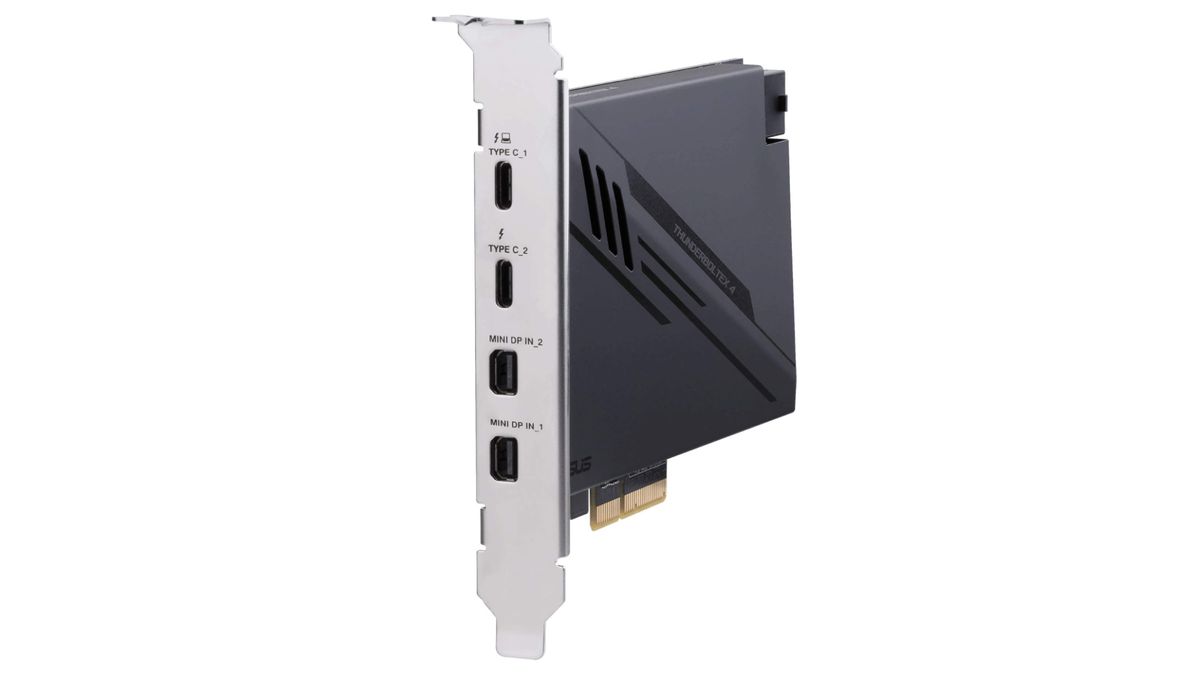

You may also get what’s often known as PCIe add-in playing cards, which might develop your pc’s I/O choices. Widespread examples embody the Asus Thunderbolt 4 (which is a PCIe x4 slot card), which incorporates 100W energy supply and charging with two USB-C and Mini DisplayPort choices. Add-in playing cards additionally exist for added M.2 2280 SSDs on the PCIe x8 port, which may give you further storage should you’ve run out of room to straight join them to your motherboard. There are a whole lot of issues you are able to do with the extra PCIe lanes obtainable in your pc, supplied your CPU has the allocation; in any other case, issues won’t work as meant.
Are 20 PCIe lanes sufficient?
OIder processors might solely have 20 PCIe lanes obtainable in complete, which is sufficient in your graphics card, however you can be unlikely to have the rest related on the motherboard operating at its meant velocity. Most trendy processors can have 24-28 usable lanes as customary, with higher-end fashions growing this quantity.
What is the distinction between PCIe 4.0 and PCIe 5.0 lanes?
Each PCIe 4.0 and PCIe 5.0 can have the identical variety of lanes obtainable by the identical typical ports on the motherboard. Nonetheless, PCIe 5.0 is twice as quick as PCIe 4.0, with double the bandwidth throughout the board.
